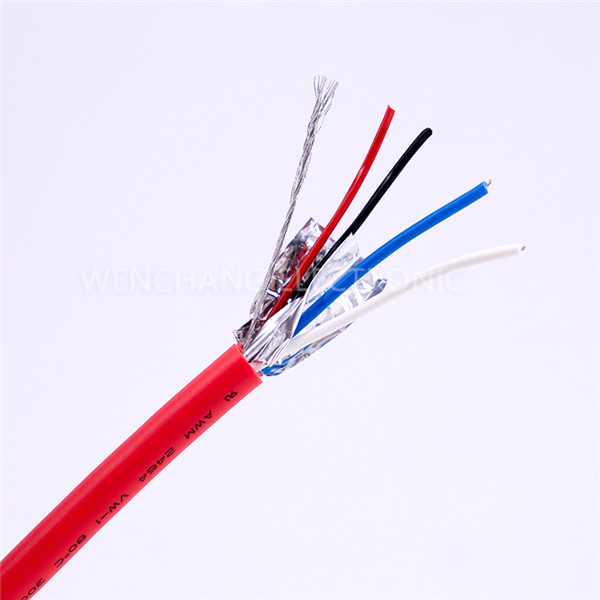

UL21412 ELECTRICAL CABLE
-- Tinned, annealed, stranded kana yakasimba conductor yemhangura.
-- TPE kana XL-PE insulation.XL-PE jekete.
-- Yakatemerwa tembiricha: 125°C.Rated voltage: 600volts.
-- Yakavharwa kana kushama tambo yemhangura inotenderera kana yakarukwa shield.
-- Inopfuura UL VW-1 & CUL FT1 yakatwasuka murazvo bvunzo.
Internal wiring uye kunze kwekubatana kwemagetsi emidziyo.
| UL Style & CUL Type | Cores | Muitisi | Insulation | Nom.Dia | Shield Coverage | Jacket Kukora | Pakazara | Muitisi | |
| Ukobvu | Dimeter | Resistance pa20 ℃ | |||||||
| AWG | Kwete/mm | mm | mm | % | mm | mm | Ω/KM | ||
| UL21412 CUL (Yakasungwa) | 2C | 30 | 7/0.100 | 0.38 | 1.1 | >=65 | 0.76 | 4.4 | 381 |
| 28 | 7/0.127 | 0.38 | 1.2 | >=65 | 0.76 | 4.5 | 239 | ||
| 26 | 7/0.16 | 0.38 | 1.3 | >=65 | 0.76 | 4.6 | 150 | ||
| 24 | 11/0.16 | 0.38 | 1.4 | >=65 | 0.76 | 4.9 | 94.2 | ||
| 22 | 17/0.16 | 0.38 | 1.6 | >=65 | 0.76 | 5.1 | 59.4 | ||
| 20 | 21/0.178 | 0.38 | 1.8 | >=65 | 0.76 | 5.5 | 36.7 | ||
| 18 | 34/0.178 | 0.38 | 2.1 | >=65 | 0.76 | 6.1 | 23.2 | ||
| 16 | 26/0.25 | 0.38 | 2.4 | >=65 | 0.76 | 6.9 | 14.6 | ||
| 3C | 30 | 7/0.100 | 0.38 | 1.1 | >=65 | 0.76 | 4.5 | 381 | |
| 28 | 7/0.127 | 0.38 | 1.2 | >=65 | 0.76 | 4.7 | 239 | ||
| 26 | 7/0.16 | 0.38 | 1.3 | >=65 | 0.76 | 4.9 | 150 | ||
| 24 | 11/0.16 | 0.38 | 1.4 | >=65 | 0.76 | 5.1 | 94.2 | ||
| 22 | 17/0.16 | 0.38 | 1.6 | >=65 | 0.76 | 5.3 | 59.4 | ||
| 20 | 21/0.178 | 0.38 | 1.8 | >=65 | 0.76 | 6 | 36.7 | ||
| 18 | 34/0.178 | 0.38 | 2.1 | >=65 | 0.76 | 6.6 | 23.2 | ||
| 4C | 30 | 7/0.100 | 0.38 | 1.1 | >=65 | 0.76 | 4.7 | 381 | |
| 28 | 7/0.127 | 0.38 | 1.2 | >=65 | 0.76 | 4.9 | 239 | ||
| 26 | 7/0.16 | 0.38 | 1.3 | >=65 | 0.76 | 5.2 | 150 | ||
| 24 | 11/0.16 | 0.38 | 1.4 | >=65 | 0.76 | 5.6 | 94.2 | ||
| 22 | 17/0.16 | 0.38 | 1.6 | >=65 | 0.76 | 5.9 | 59.4 | ||
| 20 | 21/0.178 | 0.38 | 1.8 | >=65 | 0.76 | 6.4 | 36.7 | ||
| 5C | 30 | 7/0.100 | 0.38 | 1.1 | >=65 | 0.76 | 4.9 | 381 | |
| 28 | 7/0.127 | 0.38 | 1.2 | >=65 | 0.76 | 5.1 | 239 | ||
| 26 | 7/0.16 | 0.38 | 1.3 | >=65 | 0.76 | 5.2 | 150 | ||
| 24 | 11/0.16 | 0.38 | 1.4 | >=65 | 0.76 | 5.6 | 94.2 | ||
| 22 | 17/0.16 | 0.38 | 1.6 | >=65 | 0.76 | 6.2 | 59.4 | ||
| 6C | 30 | 7/0.100 | 0.38 | 1.1 | >=65 | 0.76 | 5.1 | 381 | |
| 28 | 7/0.127 | 0.38 | 1.2 | >=65 | 0.76 | 5.5 | 239 | ||
| 26 | 7/0.16 | 0.38 | 1.3 | >=65 | 0.76 | 5.9 | 150 | ||
| 24 | 11/0.16 | 0.38 | 1.4 | >=65 | 0.76 | 6.2 | 94.2 | ||
